Cassette Filter

How it works Cassette Filter Filter Housing Compact Filter Housing Flexible Filter Housing High Performance Filtrate Outlets

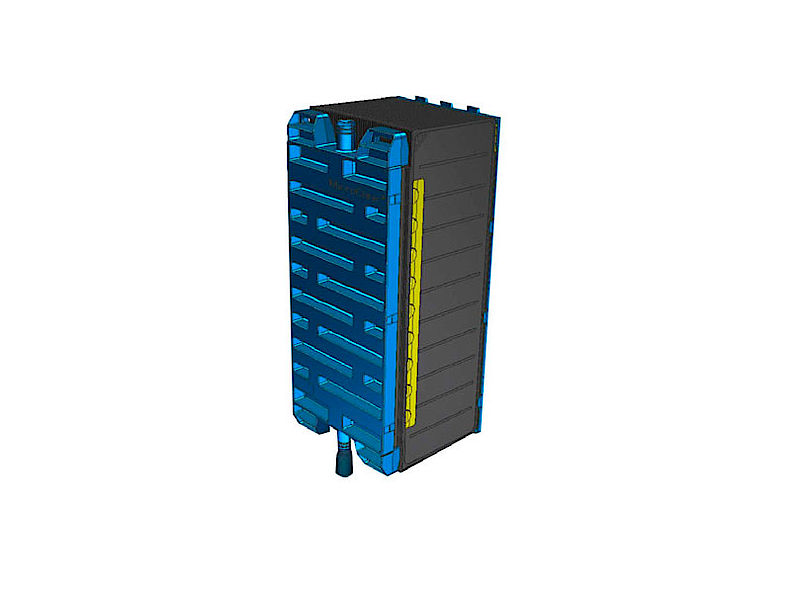

Completely welded filter cassette for the filtration of water. Typical applications: Waste Water in membrane bioreactors, surface water. The cassette consists of:

  • housing and header made of polypropylene (FDA approved)
  • 23 active filter plates made of polypropylene (FDA approved)
  • 2 protective plates made of polypropylene (FDA approved)
  • laser welded membrane made of Polyethersulfone (KTW approved)
Product
Parameter Unit Value
dimension of filter housing
(incl. flange for aeration) 		L x W x H mm 209 x 418 x 490
outlet diameter mm 25
protective plates   2
number of active plates   23
total membrane surface area m2 8
possible flow¹
2 chemical cleanings/year
1 chemical cleaning /year
 l/m²h
30
15
max. flow l/m²h 50
membrane material²   PES/PVDF
pore size nom.² μm 0.04-0.3
filtration pressure bar 0.1-0.25
  bar 0.07-0.1
filter housing material   PP
weight kg approx. 11.5
  1. depending on wastewater characteristics
  2. membrane material selectable for specified applications or customers

Completely welded filter cassette for the filtration of water. Typical applications: Waste Water in membrane bioreactors, surface water. The cassette consists of:

  • housing and header made of polypropylene (FDA approved)
  • 26 active filter plates made of polypropylene (FDA approved)
  • 2 protective plates made of polypropylene (FDA approved)
  • laser welded membrane made of polyethersulfone (KTW approved)
Product
Parameter Unit Value
dimension of filter housing
(incl. flange for aeration) 		L x W x H mm 209 x 418 x 490
outlet diameter mm 25
protective plates   2
number of active plates   23
total membrane surface area m2 8
possible flow¹
2 chemical cleanings/year
1 chemical cleaning /year
 l/m²h
30
15
max. flow l/m²h 50
membrane material²   PES/PVDF
pore size nom.² μm 0.04-0.3
filtration pressure bar 0.1-0.25
  bar 0.07-0.1
filter housing material   PP
weight kg approx. 11.5
  1. depending on wastewater characteristics
  2. membrane material selectable for specified applications or customers
